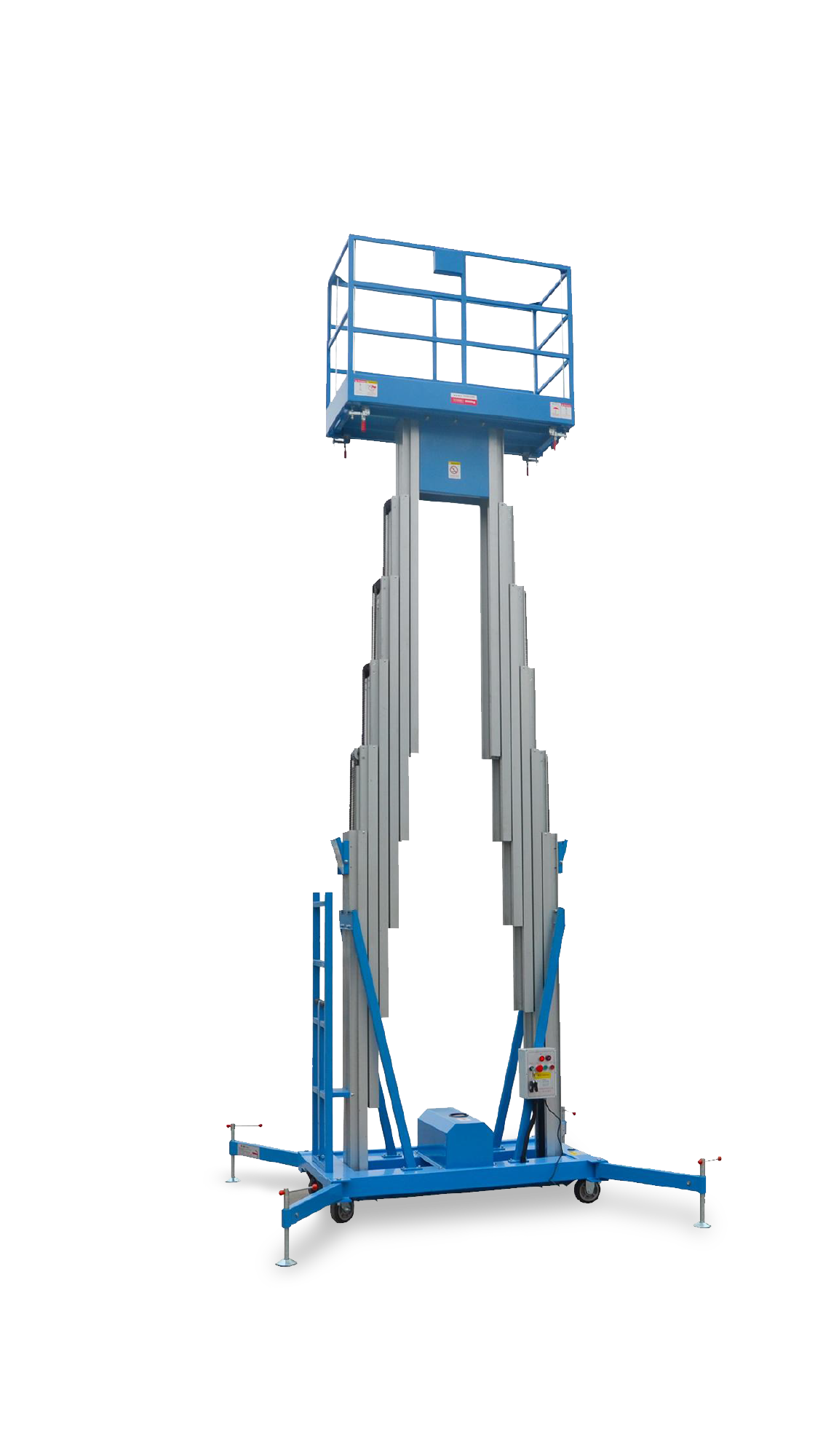

AERIAL PLATFORMS - DOUBLE MAST ALUMINIUM AERIAL LIFT PLATORM

  • Dual Aerial Work Platforms can be extended rapidly up to 14 meters by electric control.
  • Quick set up and simple to operate
  • Equipped with emergency lowering system
  • Heavy-duty Aluminum Mast
  • It is widely used for Aerial installation and maintenance of the working sites such as hotel, grand hall, sport stadium, large factory, workshop, and warehouses
  • The most ideal equipment for aerial work to replace ladder or rigger with high efficiency and more secure.



DOUBLE MAST -

It features a 300 kg load capacity and a platform size of 1420mm x 600mm The platform can be extended up to 14 meters using electric control, making it ideal for maintenance and installation tasks in large facilities. The double mast design ensures stability and safety, while the heavy-duty aluminum construction provides durability. Additionally, it is equipped with an emergency lowering system for enhanced safety. The compact dimensions (1600mm x 950mm x 1900mm) allow for easy maneuverability in tight spaces. This aerial work platform is perfect for use in hotels, stadiums, factories, and warehouses.

The work platform can be easily operated thanks to two control panels. One is located in the base of the platform and the other directly in the work basket. The lifting platform also has an emergency button to ensure that the platform can be safely lowered down in the event of a sudden power failure.

Side booms with adjustable supports are used to ensure balanced stability of this lifting platform. Each of these can be adjusted to ensure perfect stability of the platform and thus safe working on it. Thanks to the polyurethane wheels, the platform leaves no marks on the floor.

  • Electric lift
  • compact dimensions and low weight
  • easy handling
  • emergency button
  • connection to the mains
  • side booms with supports
  • polyurethane castors



Sr No Model MaxPlatformHeight WorkHeight LiftCapacity PlatformSize
01 GTWY6-200S 6000 7700 200-300 Kg 1100x600 mm
02 GTWY8-200S 8000 9700 200-300 Kg 1160x600 mm
03 GTWY9-200S 9000 10700 200-300 Kg 1320x600 mm
04 GTWY10-200S 10000 11700 200-300 Kg 1320x600 mm
05 GTWY12-200S 12000 13700 200-300 Kg 1420x600 mm
06 GTWY14-200S 14000 15700 200 kg 1420x600 mm
