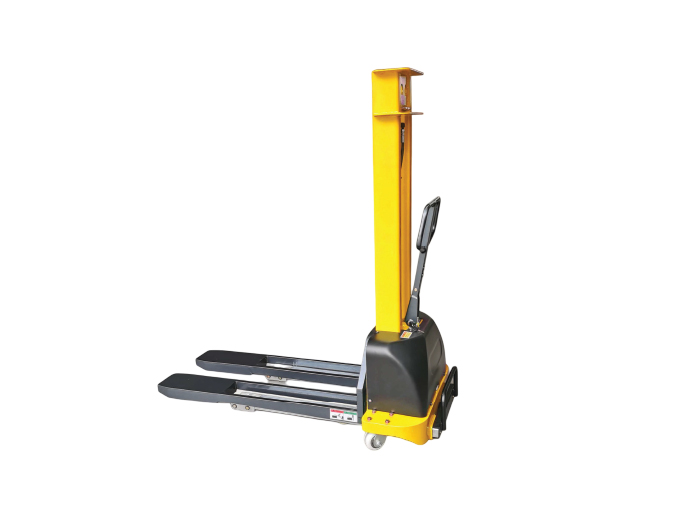

Heavy Duty Full Electric Stacker - Electric Stacker - Vango

Features

  • Belt driving film carriage
  • Battery charged
  • No weight limit
  • No pallet size limit
  • No pallet shape limit
  • Simens PLC control
  • Speed driver
  • Front Safety bumper
  • Stop at home position
  • Slow start and stop
  • Auto detecting pallet height



1. Robot tray packaging machine is a type of packaging machinery that can perform winding and packaging operations on various process requirements, without being limited by packaging size and weight.

2. It can effectively prevent damage to goods during handling and storage, prevent moisture, and maintain cleanliness.

3. Palletizing is widely used in the transportation of large volume goods, commonly found in the operation areas of various industries such as large and small manufacturer warehouses, express warehouses, and port logistics warehouses.

 4. Wrapping pallets with stretched polyethylene film is a crucial step to ensure that the goods are stacked one after another. This helps greatly simplify loading and unloading operations!

MODEL VANGO500 VANGO1000
CHARACTERISTICS
1.1 Capacity Q  kg 500 1000
1.2 Load center C mm 400 400
1.3 Wheel base LO mm 815 787
1.4 Front wheel distance W1 mm 380 398
1.5 Rear Track W2 mm 665 708
1.6 Operator type    Walkie Walkie
WHEELS
2.1 Wheel type   Nylon Nylon
2.2 Wheel quantity(steering/loading wheels) pc 2/2 2/4
2.3 Steering wheel size mm φ70×60 φ70×60
2.4 Loading wheel size mm φ100×45 φ100×50
2.5 2.5 Middle wheel size mm φ40x25 φ65x30
SPECIFICATION
3.1 Max. fork height H mm 800/1000/1300 1000/1300
3.2 Overall fork width W3 mm 535 563
3.3 Fork Length L2 mm 1150 1150
3.4 Fork width*Fork thickness B2*B mm 155×60 192.5x60
3.5 Supporting leg length L1 mm 780 780
3.6 Overall fork length L3 mm 1570 1544
3.7 Rear body width W mm 786 835
3.8 Mast lowered height H1 mm 1180/1380/1580 1366/1666
3.9 Mast extend height mm 1940/2140/2390 2120/2476
3.10 Min. turning radius mm 1100 1100
PERFORMANCE
4.1 Lifting speed mm/s 55 82
4.2 Lowering speed mm/s 70 66
4.3 Lifting motor kW DC0.8 DC1.6
BATTERY
5.1 Battery voltage V 12 12
5.2 Battery capacity Ah 45 45
5.3 Battery weight kg 13.5 13.5
WEIGHT
6.1 Weight(including battery) kg 245 290/305
