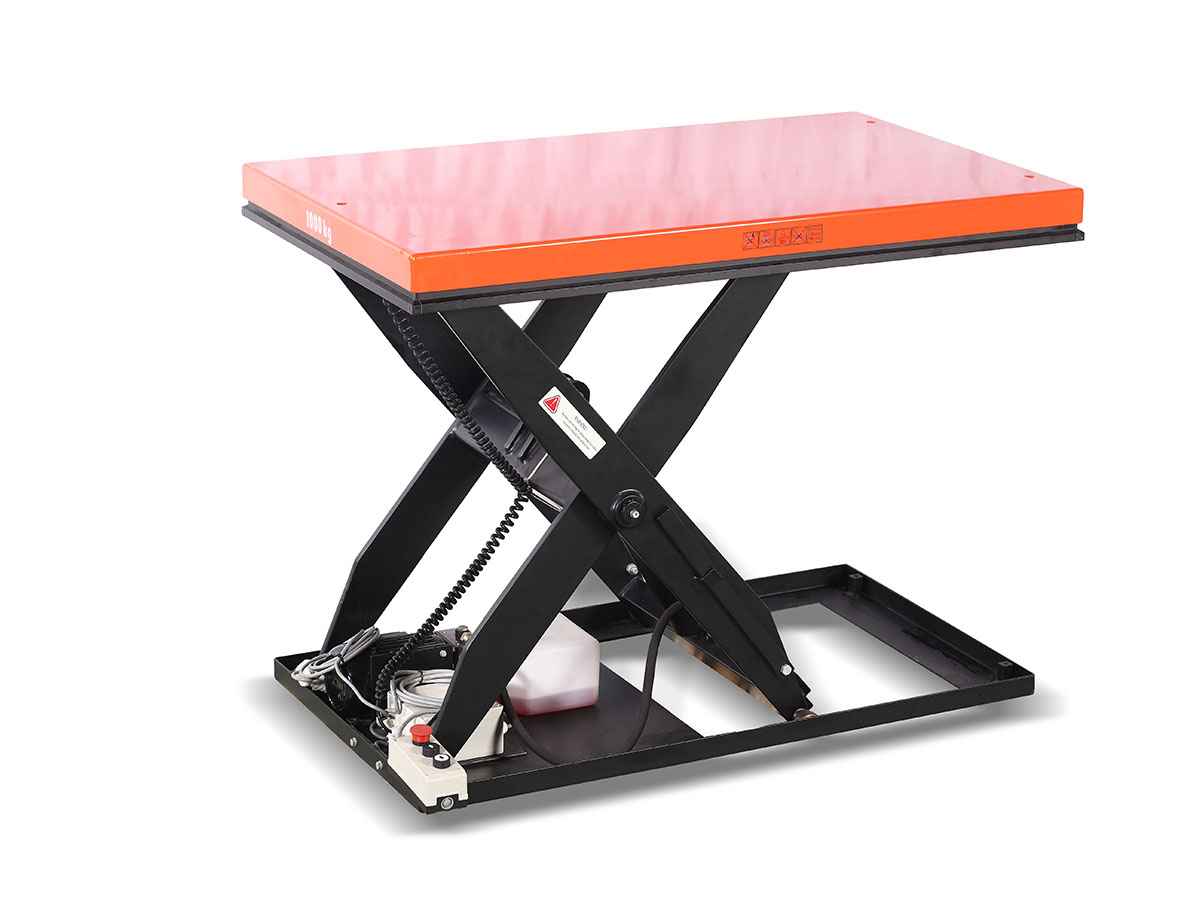

About the ELF Electric Lift Platform
These static hydraulic scissor lift platforms are used for lifting and lowering materials and can be utilised in almost any area. They are ideal for lifting up items to a more manageable level for maintenance tasks or assembling components for example.
Unlike standard scissor lift tables these ones do not have any wheels and are therefore stationary devices whilst in use, however when at their lowest they are much more compact and so can be moved to use in different areas. Using a compact hydraulic system a three phase power supply is used to operate the platform.
The models range from the smallest ELF10A-24x48 which has a 1 tonne maximum lifting capacity and the smallest platform size in the range of 1220mm in length by 610mm wide and can lift from 200mm up to 990mm high. The largest model is the ELF25A-48x72 which has a 2.5 tonne lifting capacity and a platform size of 1830mm long by 1220mm wide, the heights it can lift to range between 200mm and 1220mm. You can find the full technical details for all models in the specification tab above.
Stationary Table Lift
