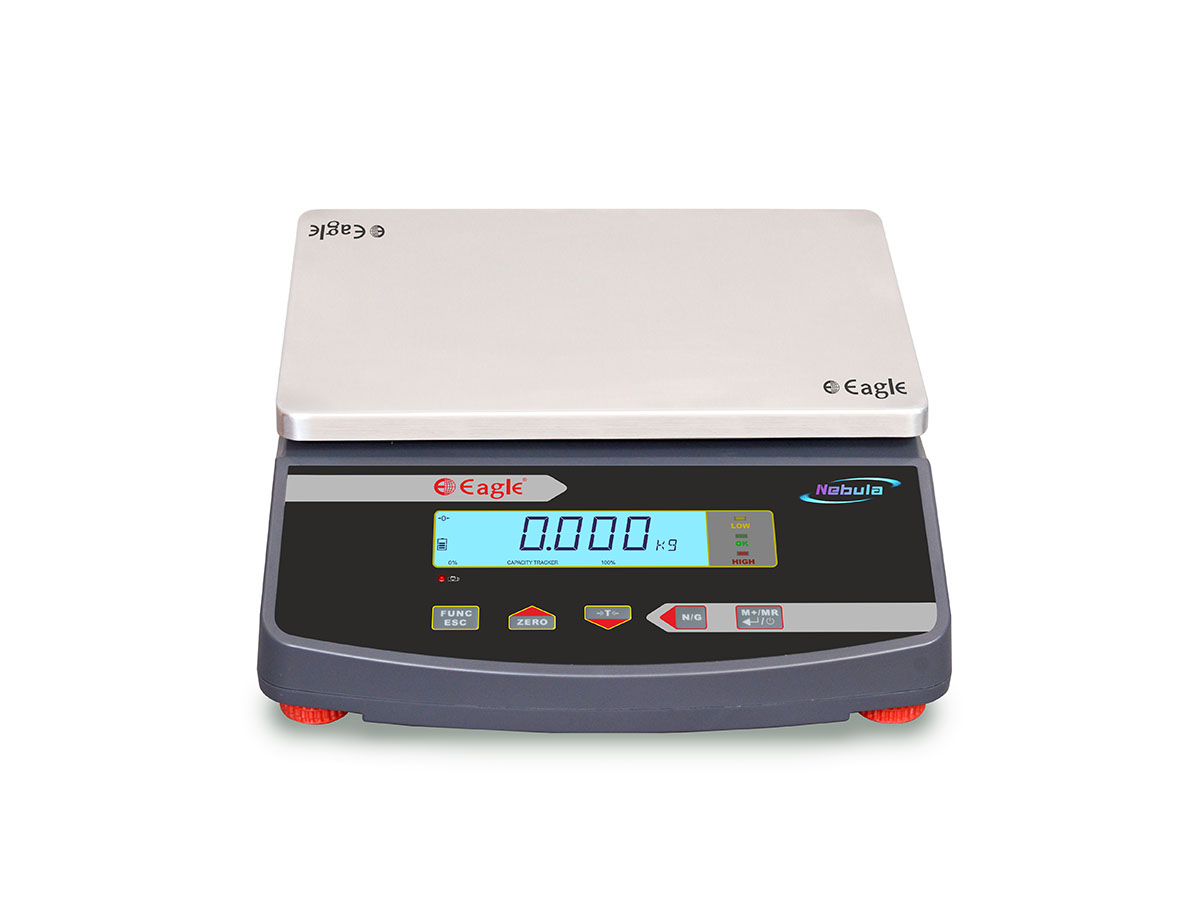

Simple Weighing (Table Top) - NEBULA SERIES

The NEBULA series has been developed for your varying weighing needs. Whether weighing, counting, check weighing, weight acccumulation or quality control – all Nebula scales provide a fast and accurate weighing performance. With its robust design, innovative and user-friendly applications, Nebula scales prove themselves in all areas of retail and industrial weighing. They include a USB-C rechargeable battery with an extremely long operating time as well as smart connectivity options and a wide rage of applications. These innovative features make Nebula the true measure. Choose your Nebula from a wide selection of models and bring home your perfect weighing solution.

Rugged And Easy To Use Design
- The body which is made entirely of Industrial Grade ABS - is rugged and easy to maintain. It can be easily cleaned with damp closth. Soft Touch key operation with SS304 stainless Steel Pan having size of 316 x 230 mm.
Bright Display with Symbols
- NEBULA-TC has LCD display with a colour changing backlight, digit height is 20 mm. The battery and other symbols enables the user to easily indentify the modes the scale is operation in. Even when the instrument is placed in a dark or low light environment, the bright LCD density displays the clear and exact weight.
Compact Design
- The lowered overall height (114 mm) improves the work efficiency by facilitating the loading/unloading of objects to and from the weighing tray.
Dual Power Sources
- Operates on rechargeable battery that allow it to be operate anywhere. The USB-C adaptor also enables it to be connected to a wall socket.
  - Lithium Ion Rechargeable Battery (DC7.4 V, 2600 mAH) for estimated backup for 10 to 12 hours of continuous usage (if battery is fully charged)
  - Power saving function is there in the scale, which turns off the backlight of the display when the scale is not used for a certain time (user settable)
High Mobility
- Thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for the use in several locations (production, warehouse, dispatch department, etc.)
Spirit Level Indicator
- The spriti level indicator in the NEBULA-TC is placed under the weighing pan and this helps the user to ensure the weighing scale is in perfect level. Maintaining level is important because the accuracy of the scale depends on the object being placed on a level surface.
Different Operation Modes
- This NEBULA-TC weighing scale is powered not just for your Weighing but also for Piece Counting, Check Weighing, Check Counting, Weight Accumulation and Simple Print Functions.
Colour changing LCD display for check weighing and check counting function.
There are 9 locations for check weighing and 9 locations for check counting to store the threshold limit, low limit and high limit.
SI Units - g, kg, lb, pcs
Optional bluetooth and RTC

1	Physical Dimension - 380 x 320 x 115 mm
2	Net Weight – 4.32 kg approx.
3	Weight Sensor – Aluminium Loadcell
4	Input range of loadcell – 0 to 15 mV
5	Resolution – 1/30000
6	Keypad – 5 keys
7	Display Type - Custom LCD Display with Backlight
8	No. of Display Windows – Dual Display (Front & Rear)
9	Front Display – LCD – 20 mm digit height
10	Rear Display - LCD - 20 mm digit height
11	Calibration Method - External Calibration
12	Power Connector - 3 pin Adaptor - Type C - 5 V, 2.4 A
13	Power Supply - 110 to 230 V AC 50 Hz
14	Operating Temperature - 0 deg to 50 deg
15	Battery Capacity - Lithium Ion - 7.4 V, 2600 mAh
16	SI Units - g, kg, lb
17	Communication Interface - RS232

Sr No	Model	Capacity	Platform Size
01	NEBULA - TC - 3	3 kg x 100 mg	316 mm x 230 mm
02	NEBULA - TC - 6	6 kg x 200 mg	316 mm x 230 mm
03	NEBULA - TC - 15	15 kg x 500 mg	316 mm x 230 mm
04	NEBULA - TC - 30	30 kg x 1 g	316 mm x 230 mm
