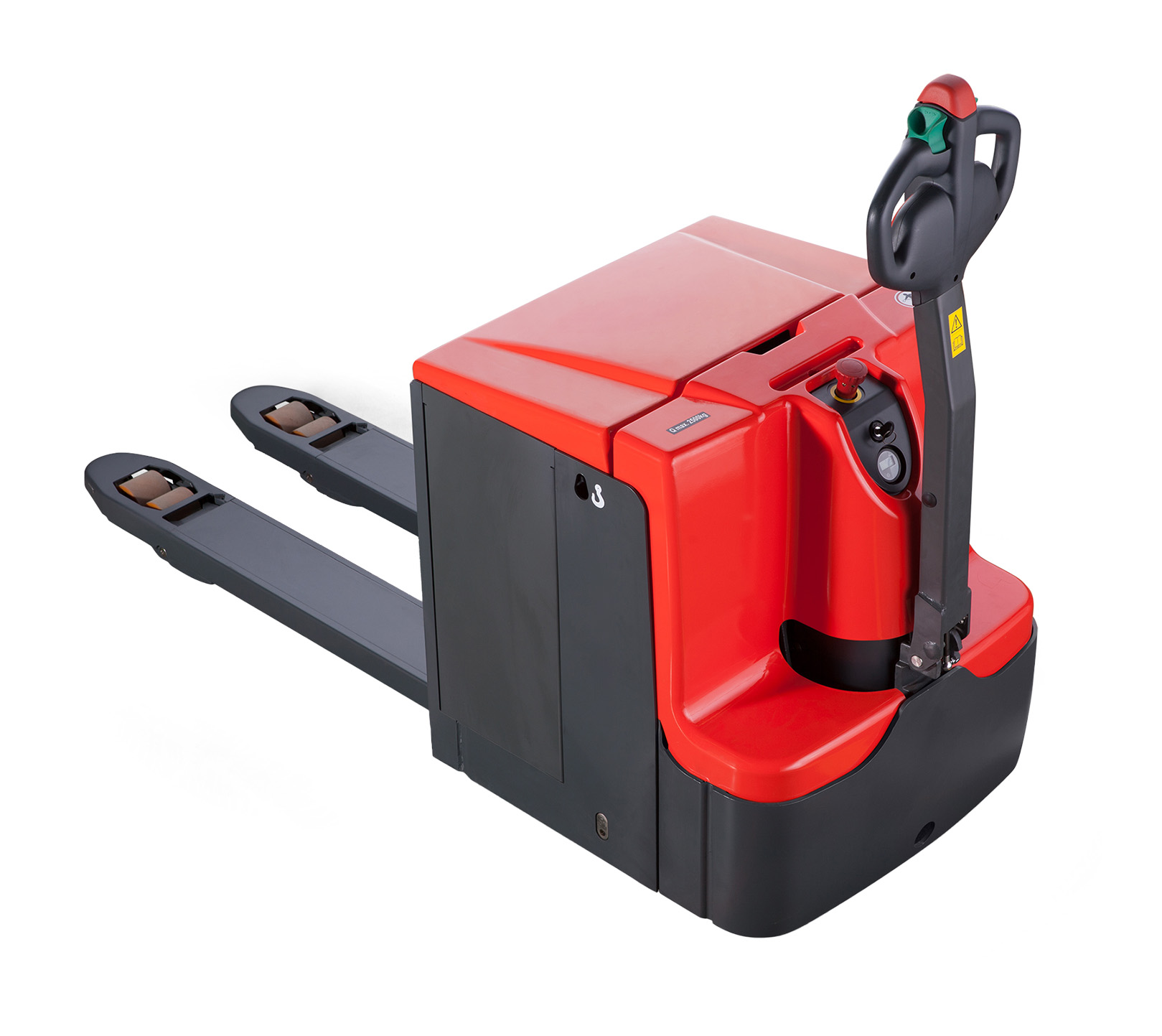

ELECTRIC PALLET TRUCKS

Pallet Truck Series - ELECTRIC PALLET TRUCKS

The PT 20-25L- series is designed for industrial applications such as truck loading and unloading as well as for pallet transportation on short distances and warehousing applications.

The robust apron of 8mm- thickness as well the strong chassis with its wet cell battery and the high quality components from partnered companies reduce high service costs and give you the reliability and performance  needed In this most demanding harsh loading and unloading operations.

  • The PTL pedestrian powered pallet truck series are renowned for its ergonomic, compact and maneuverable characteristics.
  • They are competitive and robust.
  • The German AC traction motor is powerful and maintenance-free.
  • Core components come from top brands (Kordel, Intorq, Wicke for instance).
  • This equipment helps prevent MSDs (musculoskeletal disorders).
  • These electric pallet truck have a travel speed of 6 km/h
  • It has a gradeability performance of 8 % laden and 15% unladen
  • Equipped with electromagnetic brakes
  • Load capacities change depending on the model: 2 metric tons for PT20L
  • Wheels are made of polyurethane (PU) and measure 230 mm diameter
  • Standard lift height is 125 mm
  • Aisle width for 800 x 1200 pallets is 2005 mm for PT20L
  • Forks dimensions all the same for all 3 models: 60 mm (thickness) / 173 mm (width) / 1150 mm (length)
  • Width across forks: 540 mm / 680 mm
  • Ground clearance: 25 mm
  • Turning radius: 1490 mm for PT20L
  • A long steering handle guarantees the operator is at a safe distance from the pallet truck.
  • The steering handle design ensures less operational efforts compared to short handle pallet trucks.
  • The multiplexing system CAN-BUS increases the unit's performance and reduces maintenance downtime.
  • The pallet truck and its components have been specially designed to perform maintenance and servicing with ease.
  • With only 2 screws, the cowl can be easily removed for easy access to all components. Wheels and rollers can be easily replaced without a lifting device.
  • Each PT L series has a battery for a specific type of use: PT20L has a 210Ah DIN 2PzS battery (215 kg)
  • PT L pallet trucks series chassis is extremely robust and its mainframe is 8 mm thick.
  • The stainless steel battery reduces maintenance costs and possible damages significantly.
  • Traction motor and brakes are well protected.
  • Zapi motor controller (IP54) is dust and splash resistant. Moreover, the controller on PT20L can be fully customized to meet specific user requirements.

Manufacturer's type designation  - PT16L  /  PT20L  /PT25L
Load Capacity -  1.6  /  2   /  2.5 ton
Height of tiller in drive position min.  -  Max. 820/1335
Turning radius   -  1440 mm
Travel speed laden/ unladen  -  5.7/6.0,  5.5/6.0 km/h
Battery voltage nominal capacity K5  -   160/ 210/350 (V/Ah)

Sr No Model Capacity
01 PT20 / 25L 2000 / 2500 Kg
